HPLED AR White
LED Re-Lamping for ARRI STUDIO 2000
The Lites HPLED AR White is a retrofit module that allows for upgrading ARRI STUDIO 2000 to high efficiency LED devices. The HPLED AR White is powered by a high power Light Emitting Diode (COB) with standard colour temperature of 3000°K / 5600°K (Minimum CRI 97). The electronic board, equipped with a display, manages the device via RDM or DMX protocols. The rear section of the HPLED AR White includes features that facilitate the device’s operation, such as convenient 5-pin XLR IN/OUT connectors. Made in Italy. Designed and produced by Lites srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximum power consumption 180W
- Stand-By power consumption 5W
- Minimum CRI : 90 > and 97 > (depending on LED model)
- LED K° colour temperatures: 3000°K; 4000°K; 5600°K (specify when ordering)
- Protection grade: IP20 (HOUSE ARRI STUDIO 2000)
- Working position: any (HOUSE ARRI STUDIO 2000)
- Data Protocols: DMX 512 and/or RDM ready
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Minimum room temperature: -10°C
- Maximum room temperature: 35°C
- Manual operations: via keys provided on the display
- LED life 50.000 Hrs (see manufacturer's specifications)
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Fan control: fan speed adjustments
- Net weight: 2,35Kg
- Packed weight: 3,0Kg
- Packaging volume: 0,015m³
Compliant to:
Download
Photometrics Data LED 3000°K CRI 97
Statistics rates measured with the use of 3000°K CRI 97 LEDs in use for 30 minutes at 25°C room temperature. The following data are informative and not binding.
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 5.631 | 2.503 | 1.408 | 901 | 626 | 460 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 66° | Lux | 1.094 | 486 | 273 | 175 | 122 | 89 |
| Diameter Ø m | 5,19 | 7,79 | 10,39 | 12,98 | 15,58 | 18,18 |

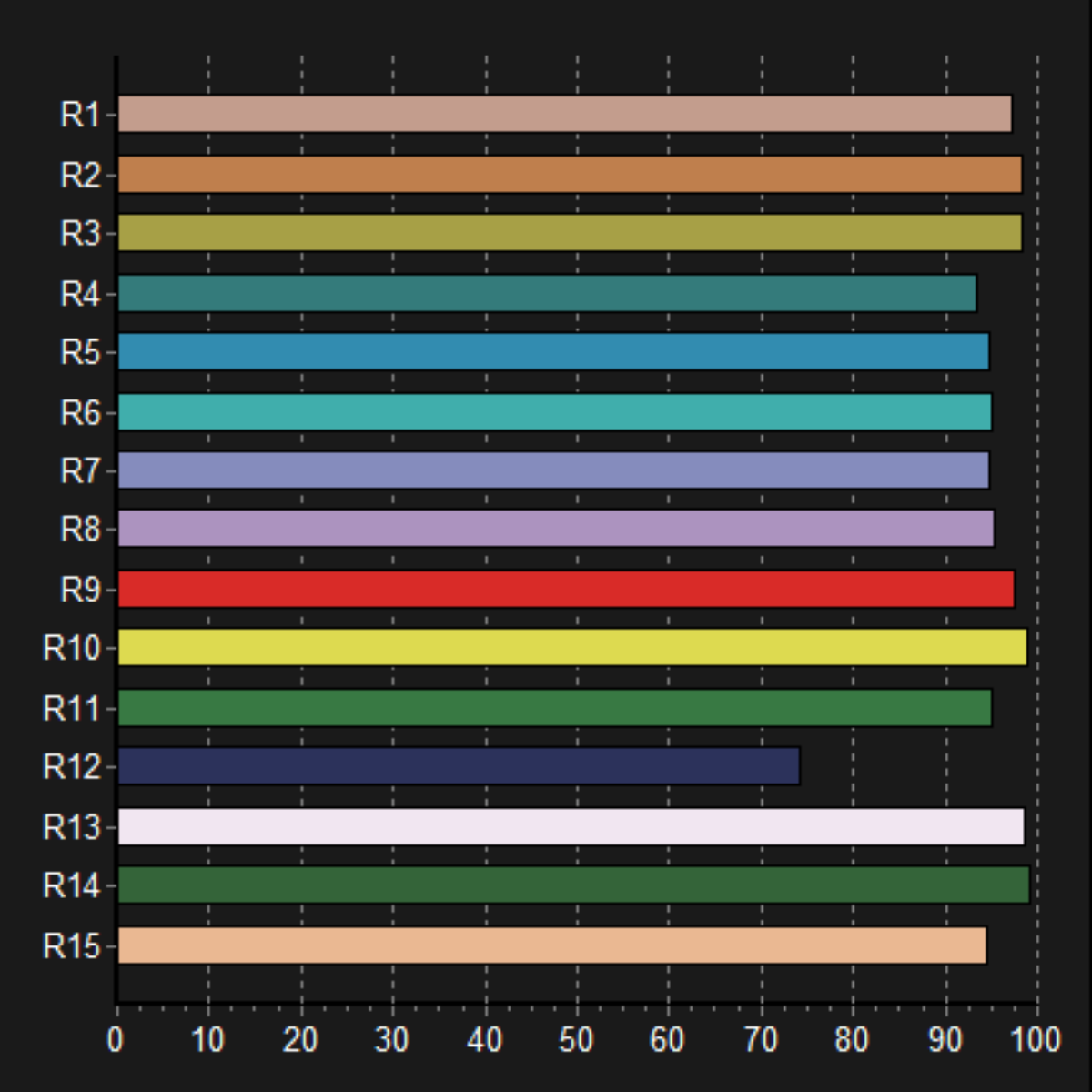

Photometrics Data LED 5600°K CRI 97
Statistics rates measured with the use of 5600°K CRI 97 LEDs in use for 30 minutes at 25°C room temperature. The following data are informative and not binding.
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 6.069 | 2.697 | 1.517 | 971 | 674 | 495 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 66° | Lux | 1.391 | 618 | 348 | 223 | 155 | 114 |
| Diameter Ø m | 5,19 | 7,79 | 10,39 | 12,98 | 15,58 | 18,18 |
Dimensions
