HPLED AR T (Bi-Colour 3000°-5700°K)
LED Re-Lamping for ARRI STUDIO 2000
The Lites HPLED AR T is a retrofit module that allows for upgrading ARRI STUDIO 2000 to high efficiency LED devices. The HPLED AR T is powered by a high power Light Emitting Diode (LED Matrix) with a variable colour temperature from 3000°K to 5700°K. The electronic board, equipped with a display, manages the device via RDM or DMX protocols. The rear section of the HPLED AR T includes features that facilitate the device’s operation, such as convenient 5-pin XLR IN/OUT connectors. Made in Italy. Designed and produced by Lites srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximum power consumption 200W
- Stand-By power consumption 5W
- CRI: 96 (3000°K) and 94 (5700°K)
- LED arrays 3000°K to 5700°K
- Protection grade: IP20 (HOUSE ARRI STUDIO 2000)
- Working position: any (HOUSE ARRI STUDIO 2000)
- Data Protocols: DMX 512 and/or RDM ready
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Minimum room temperature: -10°C
- Maximum room temperature: 35°C
- Manual operations: via keys provided on the display
- LED life 50.000 Hrs (see manufacturer's specifications)
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Fan control: fan speed adjustments
- Net weight: 2,35Kg
- Packed weight: 3,0Kg
- Packaging volume: 0,015m³
Compliant to:
Download

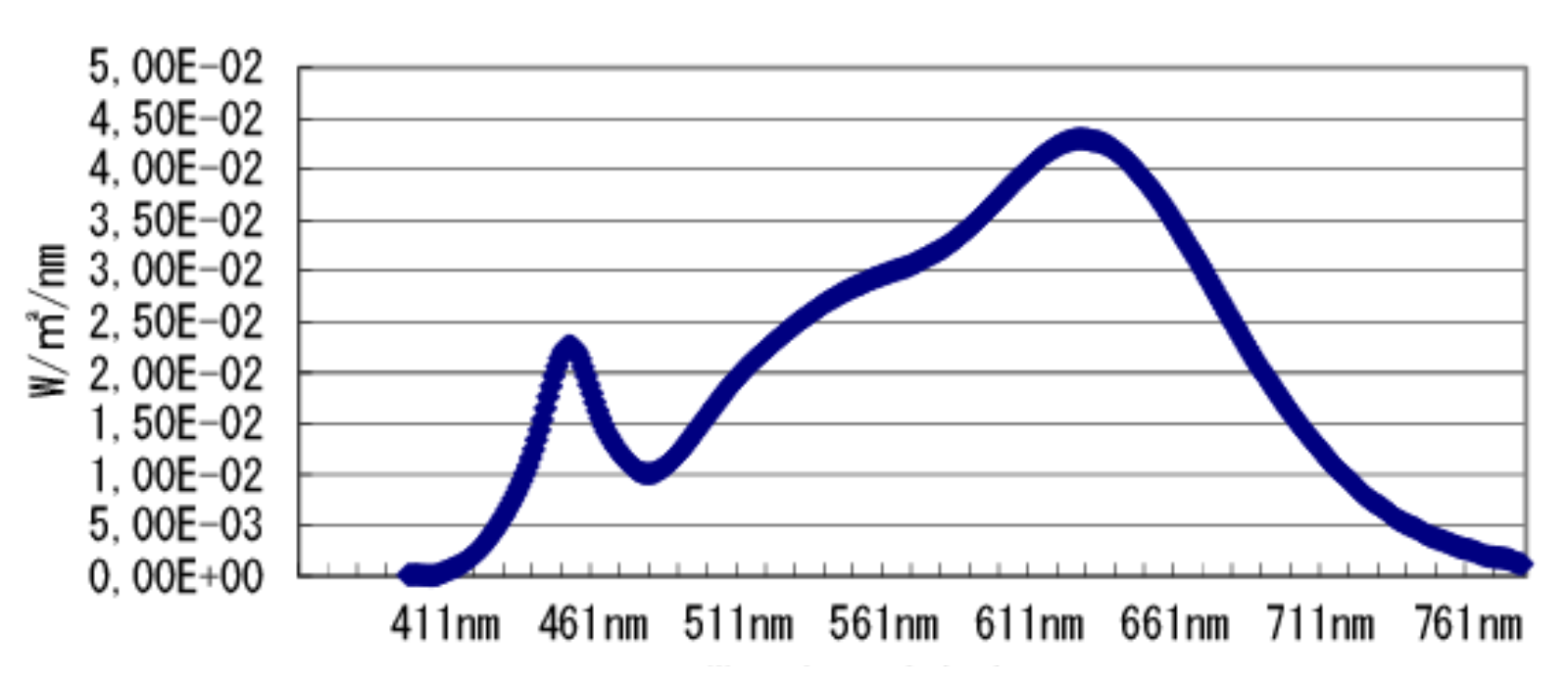

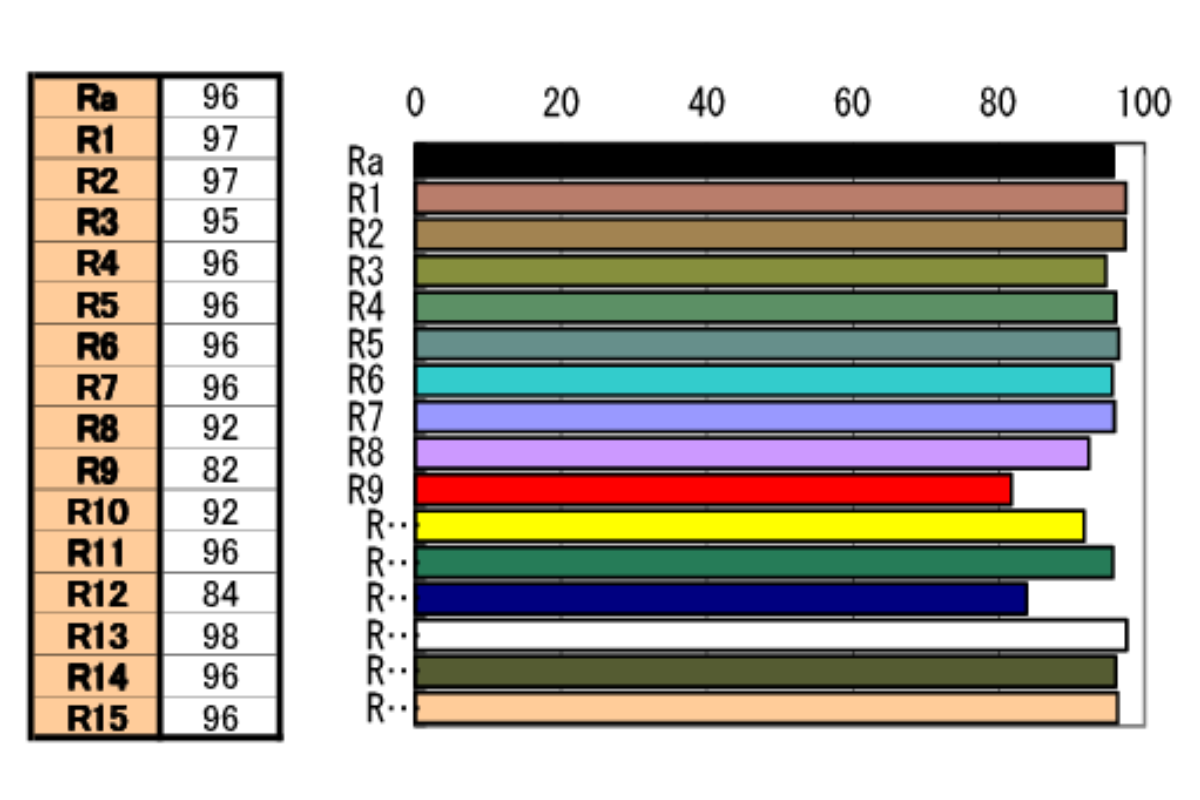

Photometrics Data LED 3000°K CRI 96
Statistics rates measured with the use of 3000°K CRI 96 LEDs in use for 30 minutes at 25°C room temperature. The following data are informative and not binding.
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 3.413 | 1.517 | 853 | 546 | 379 | 279 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 66° | Lux | 672 | 299 | 168 | 108 | 75 | 55 |
| Diameter Ø m | 5,19 | 7,79 | 10,39 | 12,98 | 15,58 | 18,18 |

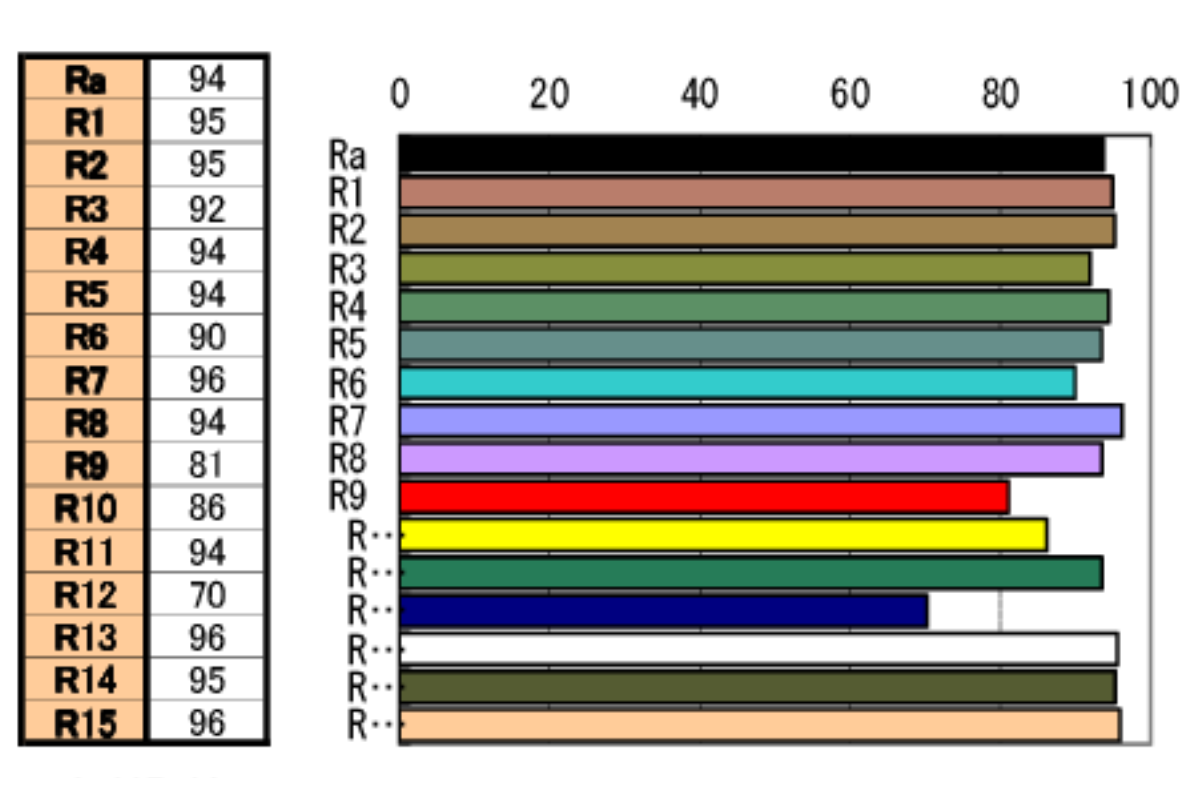

Photometrics Data LED 5700°K CRI 94 zoom 16°- 66° (cod. 320-321)
Statistics rates measured with the use of 5700°K CRI 94 LEDs in use for 30 minutes at 25°C room temperature. The following data are informative and not binding.
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 3.956 | 1.758 | 989 | 633 | 440 | 323 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 66° | Lux | 797 | 354 | 199 | 128 | 89 | 65 |
| Diameter Ø m | 5,19 | 7,79 | 10,39 | 12,98 | 15,58 | 18,18 |
Dimensions
