F 200 Z (white zoom)
High precision and smooth motions
Lites F 200 Z (motorized Zoom) embodies lighting precision and smooth movements. This Fresnel luminaire fixture features a cutting-edge 200W LED light source and the unique advantage of a motorized zoom function. Comparable to a traditional 1200W tungsten fixture, the Lites F 200 Z has a low-power consumption of only 200W. Its robust die-cast aluminum construction ensures both durability and optimal heat dissipation. The motorized Zoom guarantees smooth and uniform movements with just the touch of a button. Flicker-free and equipped with 16-bit dimming, the Lites F 200 Z also features a silent fan with adjustable speed control. Compatible with DMX and/or RDM protocols, its user-friendly digital display caters to every operator’s needs. Designed and manufactured in Italy by Lites Srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximun power consumption 200W
- Stand-by power consumption: 5W
- LED life 50.000 Hrs (see manufacturer's specifications)
- LED colour temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
- Motorized zoom 20° to 60°
- Minimum CRI: 90 > and 97 > (depending on LED model)
- Die-aluminium body to maximize heat dissipation
- Rear handle for good grip of unit; side-lock on mounting yoke to adjust and set unit position
- Fresnel lens Ø150mm
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Manual operations: via keys provided on the display
- Minimum room temperature: -10°C
- Maximum room temperature: 35°C
- Maximum body temperature: 60°C
- Protection rating: IP20
- Working position: +90°/-90° on vertical axe
- Colour-frame gate dimensions: 185x195 mm
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Power connectors: IN - OUT power-con Neutrik connectors
- Data Protocols: DMX 512 and/or RDM ready
- Idle fan mode for totally silent use of the unit
- Unit net weight: 6,9 Kg
- Gross weight: 7,5 Kg
- Cubical volume: 0,0512m³
- Accessory: 4-leaf barndoor
Compliant to:
Download
Photometrics Data LED 3000°K CRI 97
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Angle 20° | Lux | 4244 | 1886 | 1061 | 679 | 472 | 346 |
| Diameter Ø m | 1.12 | 1.68 | 2.24 | 2.81 | 3.37 | 3.93 | |
| Angle 60° | Lux | 1539 | 684 | 385 | 246 | 171 | 126 |
| Diameter Ø m | 4.61 | 6.90 | 9.20 | 11.50 | 13.80 | 16.10 |
Photometrics Data LED 5600°K CRI 97
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Angle 20° | Lux | 4441 | 1974 | 1110 | 711 | 493 | 363 |
| Diameter Ø m | 1.12 | 1.68 | 2.24 | 2.81 | 3.37 | 3.93 | |
| Angle 60° | Lux | 1606 | 714 | 402 | 257 | 178 | 131 |
| Diameter Ø m | 4.61 | 6.90 | 9.20 | 11.50 | 13.80 | 16.10 |

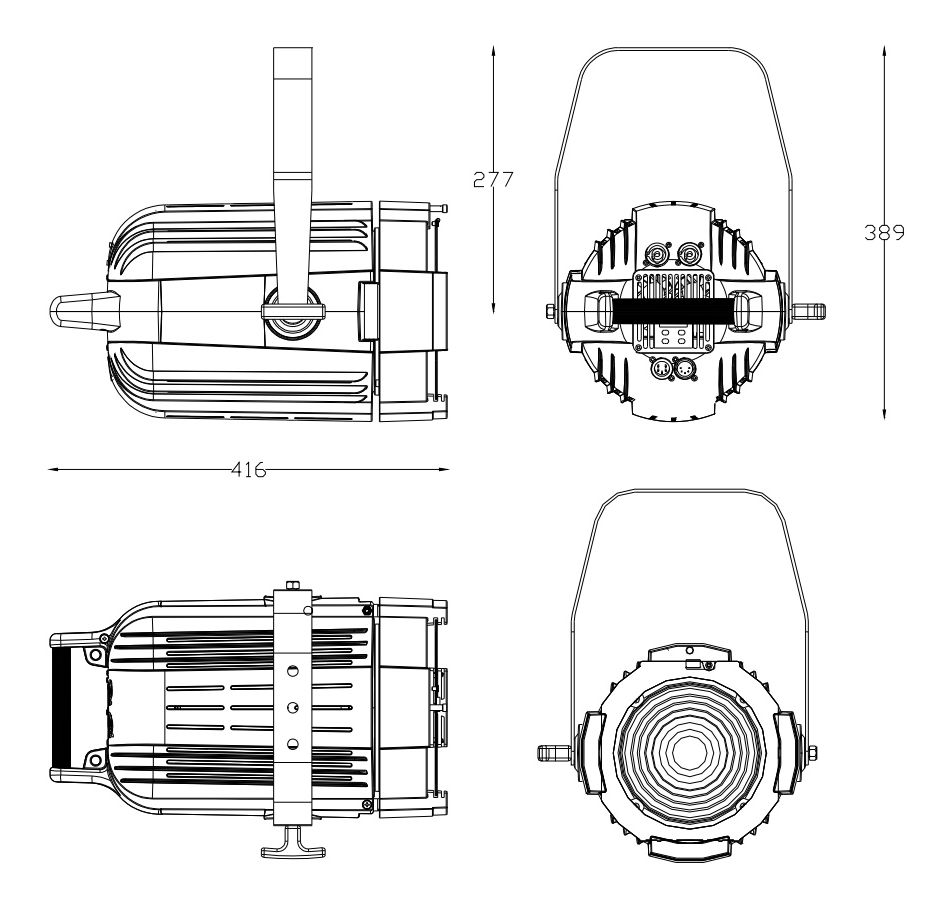

Dimensions
The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time without notice.
