F 200 PO (pole operated)
Boundless LED lighting
Lites F 200 (Standard), Lites F 200 Zoom (motorized zoom), and Lites F 200 PO (Pose-Operated) are Fresnel luminaire fixtures equipped with a cutting-edge 200W LED light source. The light output of Lites F 200 rivals that of a traditional 1200W tungsten fixture, yet consumes only 200W of power. Crafted from sturdy die-cast aluminum, the Lites F 200 boasts an aesthetically pleasing design and efficient heat dissipation. The onboard helicoidal screw allows for easy adjustment of the beam angle from 20° to 60°. The motorized Zoom model eliminates the need for manual operation, ensuring smooth and uniform movements. The PO version features the DeSisti PO yoke system. Flicker-free and equipped with 16-bit dimming, the Lites F 200 also includes a silent fan with adjustable speed control. Operable via DMX and/or RDM protocols, all Lites F 200 models feature a user-friendly digital display to meet operators’ needs. Designed and manufactured in Italy by Lites Srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximun power consumption 200W
- Stand-by power consumption: 5W
- LED life 50.000 Hrs (see manufacturer's specifications)
- LED colour temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
- Beam angle: 20°-60° via helical screw
- Minimum CRI: 90 > and 97 > (depending on LED model)
- Die-aluminium body to maximize heat dissipation

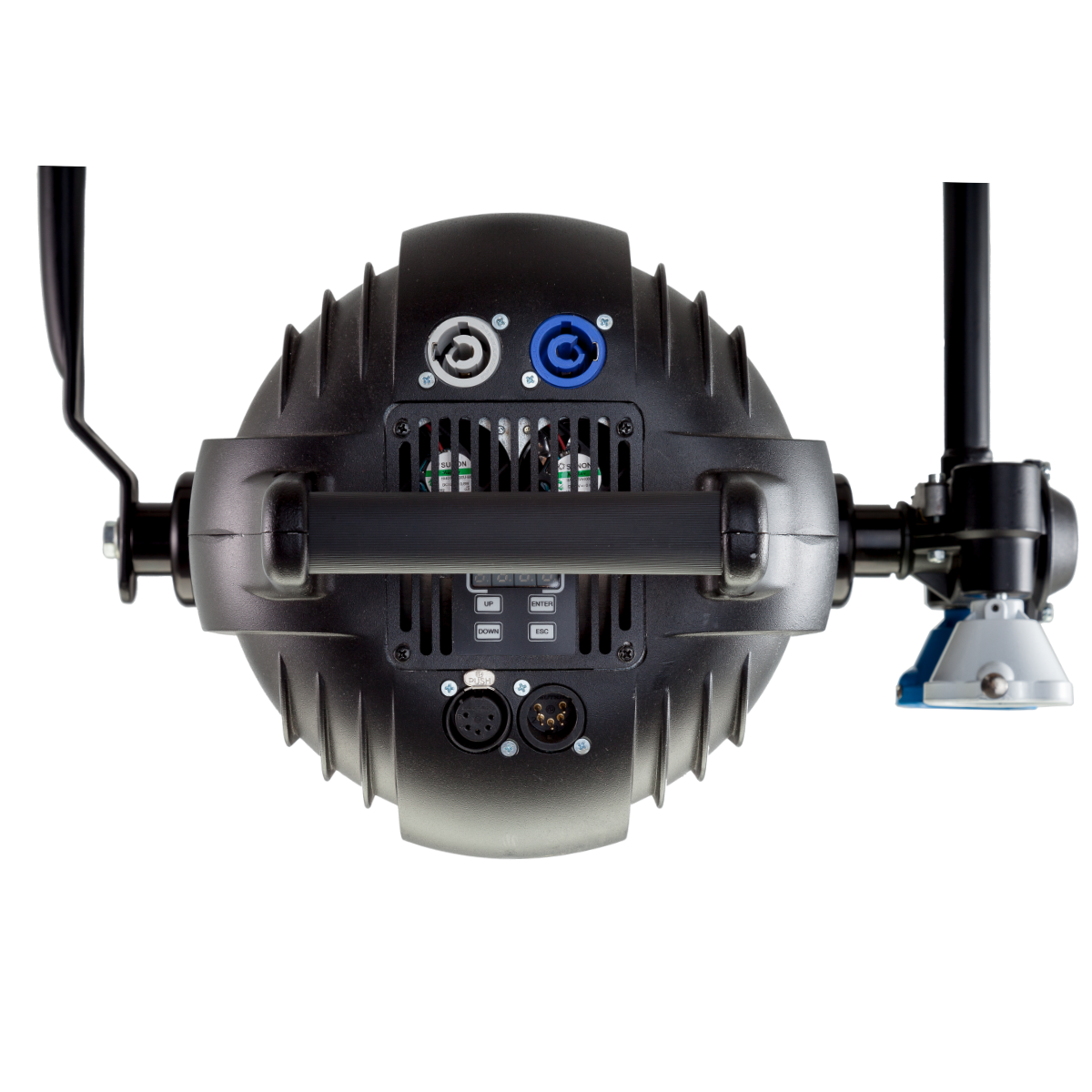

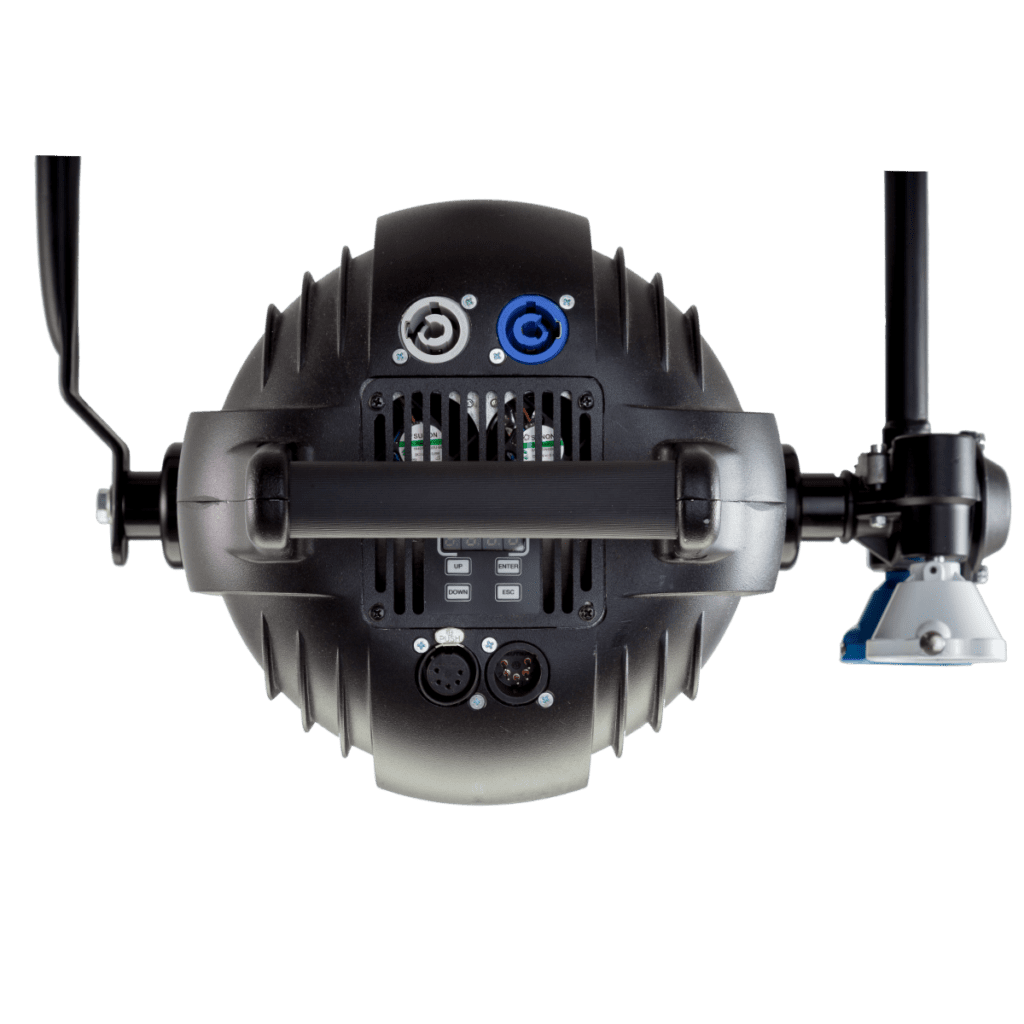

- Rear handle for good grip of unit; side-lock on mounting yoke to adjust and set unit position
- Fresnel lens Ø150mm
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Manual operations: via keys provided on the display
- Minimum room temperature: -10°C
- Maximum room temperature: 35°C
- Maximum body temperature: 60°C
- Protection rating: IP20
- Working position: +90°/-90° on vertical axe
- Colour-frame gate dimensions: 185x195 mm
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Power connectors: IN - OUT power-con Neutrik connectors
- Data Protocols: DMX 512 and/or RDM ready
- Idle fan mode for totally silent use of the unit
- Unit net weight: 9,0 Kg
- Gross weight: 10,0 Kg
- Cubical volume: 0,096m³
- Accessory: 4-leaf barndoor
Compliant to:
Download
Photometrics Data LED 3000°K CRI 97
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Angle 20° | Lux | 4244 | 1886 | 1061 | 679 | 472 | 346 |
| Diameter Ø m | 1.12 | 1.68 | 2.24 | 2.81 | 3.37 | 3.93 | |
| Angle 60° | Lux | 1539 | 684 | 385 | 246 | 171 | 126 |
| Diameter Ø m | 4.61 | 6.90 | 9.20 | 11.50 | 13.80 | 16.10 |
Photometrics Data LED 5600°K CRI 97
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Angle 20° | Lux | 4441 | 1974 | 1110 | 711 | 493 | 363 |
| Diameter Ø m | 1.12 | 1.68 | 2.24 | 2.81 | 3.37 | 3.93 | |
| Angle 60° | Lux | 1606 | 714 | 402 | 257 | 178 | 131 |
| Diameter Ø m | 4.61 | 6.90 | 9.20 | 11.50 | 13.80 | 16.10 |
Dimensions
The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time without notice.
